Series Z-400 - Product
Series Z-400 Pipeline Flowmeters
The major parts of Z-400 series pipeline flowmeter: material of body tube is PMMA, the connectors are PP or stainless steel grade 304, the float material is stainless steel grade 304, the guide rod is stainless steel grade 316.
- Maximum working pressure: ≤6bars
- Temperature limit: ≤55°C
- Accuracy: ±6%
- O-Ring material: silicon

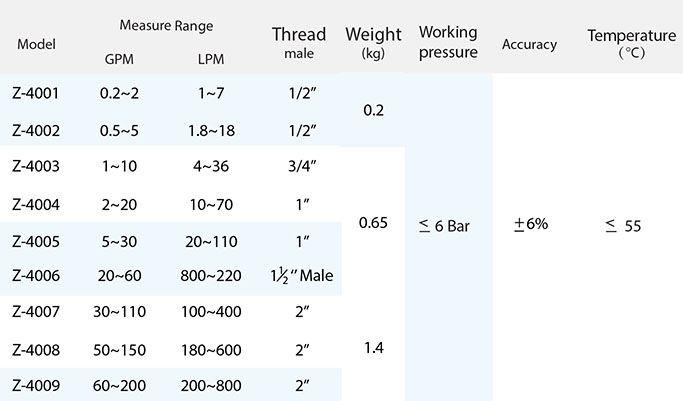

Specifications
MODEL | MEASURE RANGE | THREAD (F/BSP) | WEIGHT (KG) | WORKING PRESSURE | ACCURACY | TEMPERATURE (°C) | |
GPM | LPM | ||||||
Z-4001 | 0.2-2 | 1-7 | 1/2" | 0.2 | ≤6% | ±6% | ≤55 |
Z-4002 | 0.5-5 | 1.8-18 | 1/2” | ||||
Z-4003 | 1-10 | 4-36 | 3/4" | 0.65 | |||
Z-4004 | 2-20 | 10-70 | 1” | ||||
Z-4005 | 5-30 | 20-110 | 1” | ||||
Z-4006 | 20-60 | 80-220 | 1 ½” MALE | ||||
Z-4007 | 30-110 | 100-400 | 2” | 1.4 | |||
Z-4008 | 50-150 | 180-600 | 2” | ||||
Z-4009 | 60-200 | 200-800 | 2” | ||||
